A product team wants to improve fit, weight, durability, manufacturing consistency, or customer experience. The nominal CAD model explains what was intended, but field units show what was actually produced and used.
Scanning can document accessible physical geometry and help teams compare products, prototypes, tooling, or returned parts. It does not determine root cause, material behavior, or product performance on its own.
The strongest workflow combines measured geometry with manufacturing records, testing, service history, engineering analysis, and clearly defined success criteria.
Why a Physical Baseline Matters
Production variation, assembly stack-up, wear, repair, and service deformation can make a physical unit differ from the nominal model. A scan provides a dated record of one specific item or sample population.
That record becomes more meaningful when the team identifies part history, manufacturing lot, operating condition, failure status, and whether the unit is representative. One scanned example should not automatically be treated as the entire population.
Where Scanning Supports Improvement
- Baseline comparison: compare physical units with nominal CAD or with one another.
- Assembly variation: evaluate visible component position, clearance, and stack-up relationships.
- Returned-part documentation: preserve visible deformation, wear, or fracture geometry before additional handling.
- Prototype verification: compare an accessible prototype surface with the controlled design reference before testing.
- Tooling and fixture review: document visible geometry that may influence repeatability.
- Weight or packaging studies: provide geometric input for responsible engineering analysis.
Geometry Does Not Prove Causation
A dimensional difference may correlate with a failure or performance change without causing it. Material properties, loads, temperature, fatigue, process variation, lubrication, controls, environment, and user behavior may also matter.
GDS can document and compare geometry when scoped. Root-cause conclusions, statistical significance, product safety, and engineering disposition belong to appropriately qualified parties using the complete evidence set.
Analysis and Simulation Handoff
Scan-derived geometry may be prepared for FEA, CFD, kinematic review, or other analysis, but the raw mesh is rarely ready without cleanup and modeling decisions. Boundary conditions, material properties, wall thickness, contacts, loads, and validation data must come from appropriate sources.
A surface scan does not automatically determine wall thickness. Both sides must be accessible or thickness must be provided through drawings, direct measurement, NDT, or another suitable method.

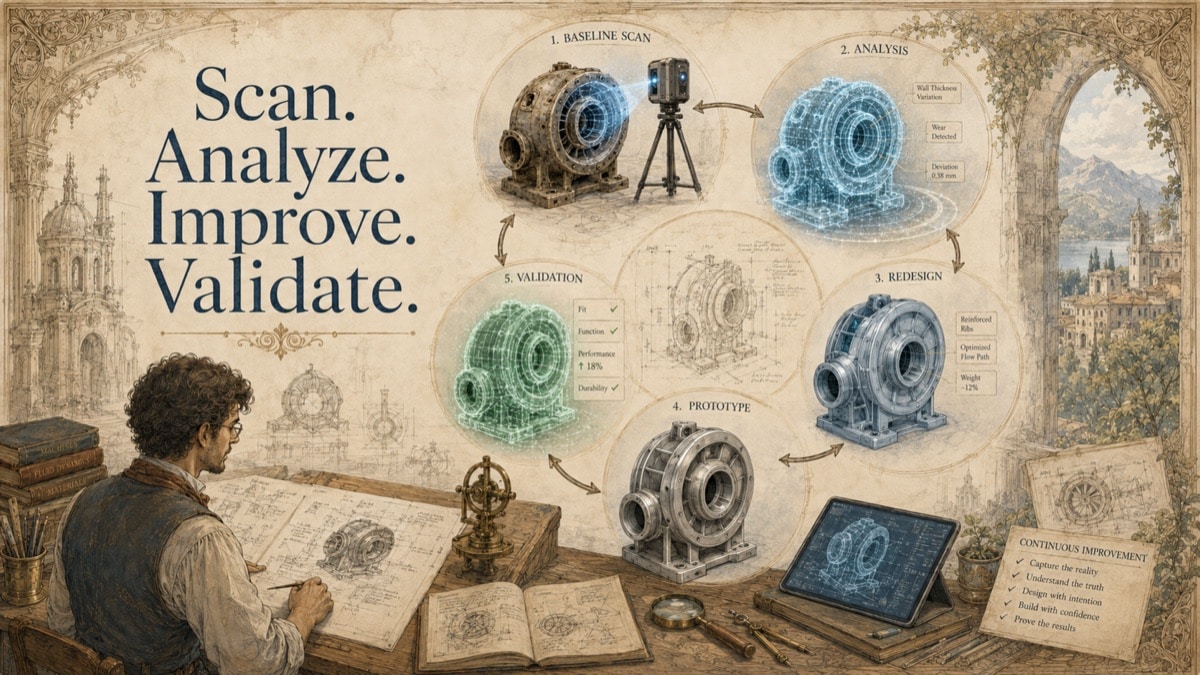

The Improvement Validation Loop
1. Define the problem and success criteria
State what must improve and how success will be tested.
2. Build a traceable baseline
Identify the samples, history, scan method, reference, and limitations.
3. Develop and document the proposed change
Separate measured geometry from engineering assumptions and design decisions.
4. Verify the prototype geometry
Confirm whether the accessible manufactured geometry reflects the intended change before performance testing.
5. Test performance and production repeatability
Use the responsible engineering and quality processes to determine whether the change works and can be produced consistently.
Interactive Project Readiness Check
Select the items your team has already defined. This planning aid does not determine technical acceptance or replace project scoping.
Quick Facts
Continue Reading
These guides connect this topic to the next practical decision your team may need to make.
Frequently Asked Questions
How many units should be scanned?
There is no universal number. Sample selection should follow the engineering or statistical question, production variation, risk, and available history.
Can scanning identify why a part failed?
It can document visible geometry that may support an investigation, but it does not prove root cause by itself.
Can scan data be used for FEA or CFD?
Yes, after appropriate geometry preparation. The analyst must still define materials, thickness, loads, contacts, boundary conditions, and validation.
Can GDS compare our product with a reference product?
Potentially, when the client confirms ownership or authorization and the scope respects applicable intellectual-property, contractual, export-control, and legal requirements.
How should confidential product data be handled?
Confidentiality, access, storage, transmission, retention, and destruction requirements should be agreed in the contract for the specific engagement.
